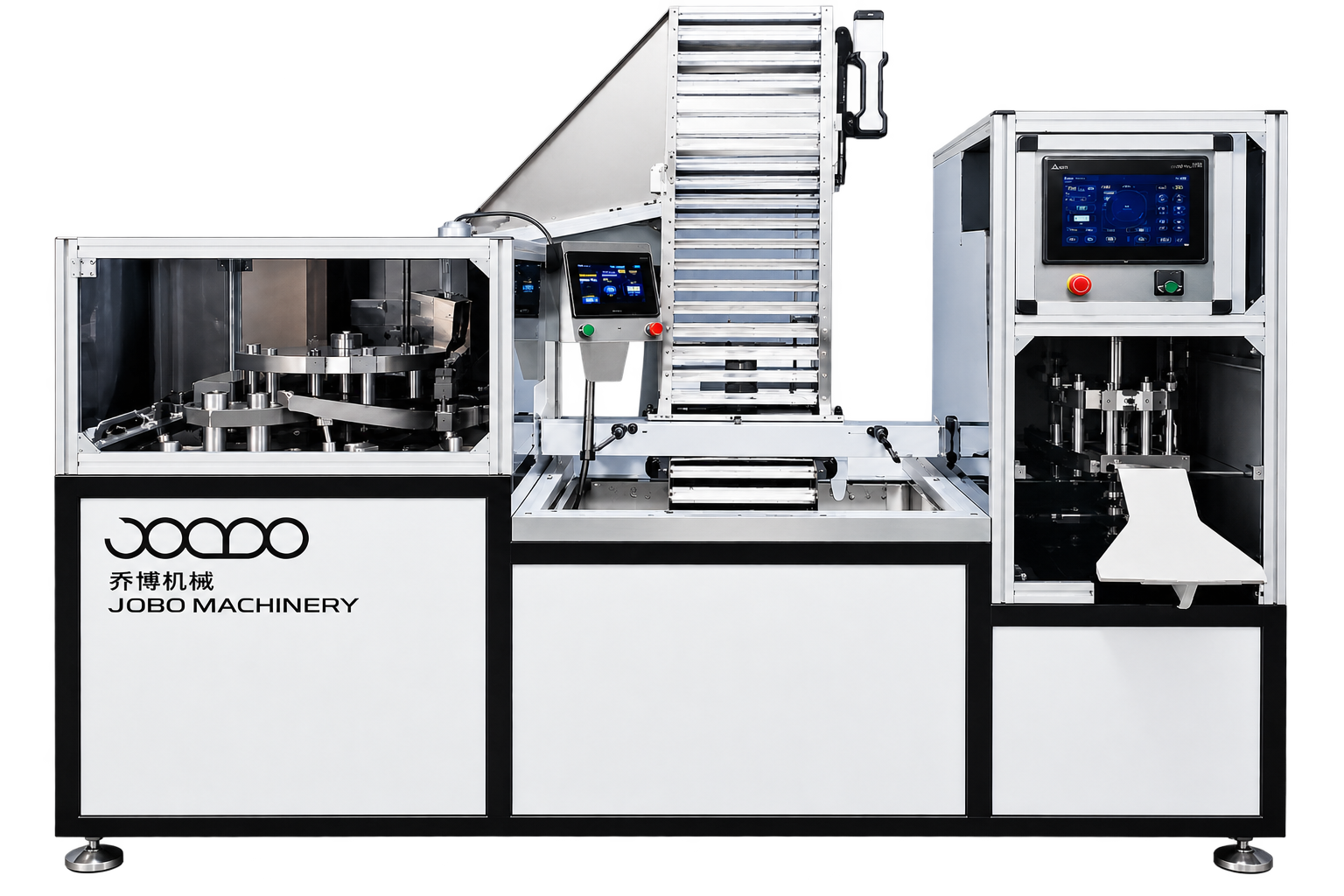

COMBINED SLITTING & FOLDING MACHINE
JOBO - CSF
The JOBO Combined Cap Slitting & Folding Machine is an integrated solution designed to perform anti-theft ring slitting and inward folding of plastic bottle caps in a single continuous process. By combining two essential post-moulding operations into one automated system, the machine helps cap manufacturers achieve consistent processing, reduce handling between operations, and improve overall production efficiency.
The machine is suitable for manufacturers producing plastic closures for beverages, packaged water, food, pharmaceutical and other consumer-product applications where reliable tamper-evident cap performance and consistent appearance are essential.
Designed for high-speed plastic cap production lines, the machine precisely creates the required slits on the cap's anti-theft ring and subsequently folds the extension of the ring inward. By carrying out both operations in sequence, the system eliminates the need to transfer caps between separate slitting and folding machines, helping simplify the production layout and reduce intermediate handling.
The integrated process ensures accurate and uniform treatment of every cap while maintaining stable production performance.
| SPECIFICATION | |
|---|---|
| TYPE | JOBO-CSF |
| CAPACITY | 25000-48000 PCS/HR |
| CAP DIAMETER | 18-60 MM |
| CAP HEIGHT | 12-50 MM |
| TOTAL INSTALLATION POWER | 9.1 KW |
| ACTUAL PRODUCTION POWER | 3.4 KW |
| AIR CONSUMPTION | 0.8 M³ /MIN |
| VOLTAGE | 220V, 50HZ |
| MACHINE SIZE | L2250*W1450*H2180 MM |
| MACHINE WEIGHT | 1250 KG |
Why Choose the JOBO Combined Slitting & Folding Machine?
- Slitting and folding are completed in the same machine, so there is no need to move the caps between two separate machines.
- The machine is designed to provide consistent slitting and folding, helping maintain the same finish across the production batch.
- The machine operates automatically with PLC control, making it easier to run and manage during continuous production.
- The machine can be integrated into an existing cap production setup, depending on the production line and cap requirements.
- Combining two operations into one machine helps reduce the floor space needed compared with using separate slitting and folding machines.
The JOBO Combined Slitting & Folding Machine combines both cap slitting and folding operations in one automated system. It helps manufacturers save time, reduce cap handling, and simplify the production process. The machine is designed for consistent and reliable processing of plastic bottle caps, making it a practical solution for high-volume cap production. For more information about the machine, capacity, and suitable cap specifications, Contact Jobo India.
